Bend Callouts page (Bend Table Properties dialog box)

The Bend Callouts tab is available when you place a bend table on a drawing that contains a flattened sheet metal drawing view. Use these options to specify the sheet metal bend information that you want to show in the bend callouts.

Note:

The Bend Callouts tab is not available when you edit the bend table properties.

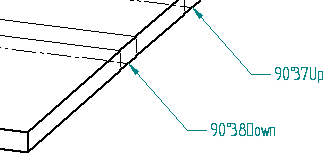

Bend Callout Text

Bend Angle

Displays the outside angle (B) with no sign, such as 120°.

If you want to show bend direction, such as Up or Down, also click the Bend Direction button.

Tip:

To display a signed angle, such as –120°, type %BA instead of selecting the Bend Angle button.

Included Angle

Displays the inside bend angle (A) with no sign, such as 90°.

If you want to show bend direction, such as Up or Down, also click the Bend Direction button.

Bend Radius

References bend radius information for flattened sheet metal views.

Bend Quantity

References bend quantity information for flattened sheet metal views.

Bend Sequence

References bend sequence information for flattened sheet metal views.

Bend Direction

References bend direction information for flattened sheet metal views.

Symbols and Values

Opens the Select Symbols and Values dialog box for you to generate the appropriate symbols and model-derived values without having to type the property text codes yourself. Examples of the types of symbols you can select include ± (plus minus), ° (degree), and ∅ (diameter). Examples of model-derived values include hole references, bend data, and weld beads.

Bend Callout Type

Place bend callouts inline with the centerlines

Places the bend callouts inline with the bend centerline.

If you do not select this option, the callouts are placed as balloons.
