The first figure shows how an arc-shaped open profile extends radially to meet the drafted part face.

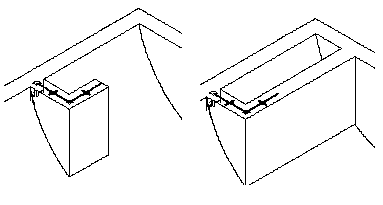

The first figure shows a non-extended profile. The second figure shows the profile extended to the next surface.
