Vent features

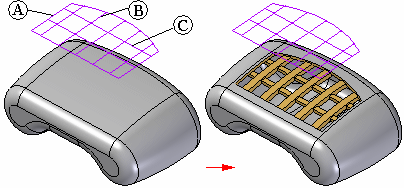

Construct a vent feature by selecting elements from a single, existing sketch. The sketch defines the exterior boundary element (A), ribs (B), and spars (C) for the vent feature. The exterior boundary must be a closed element and cannot pass through any surfaces on the design model. The ribs and spars can be open or closed elements.
