Sheet metal features on thin parts

While working in the Ordered environment, you can now construct sheet metal features along portions of a part that have a uniform thickness.

For example, you can create a thinned part in the Ordered Part environment,

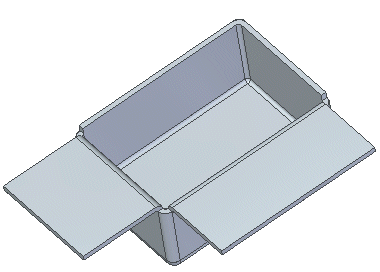

Switch to the Ordered Sheet Metal environment, and add features such as flanges,

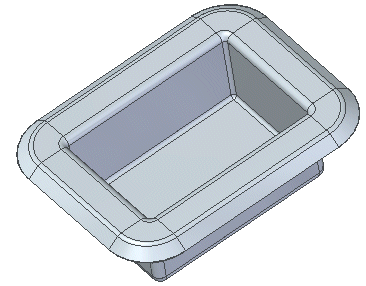

Contour flanges,

Dimples, and other deformation features.

Bends created by the sheet metal features can be flattened.

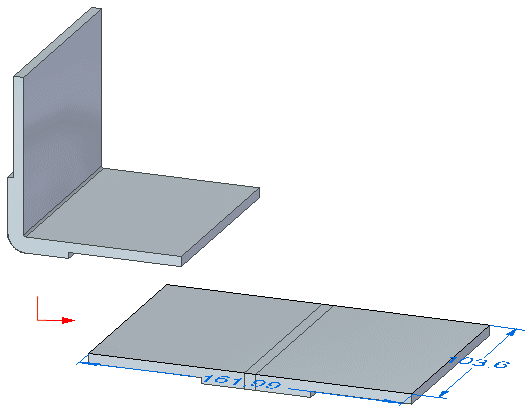

You can use the Flat Pattern command to flatten the design model.

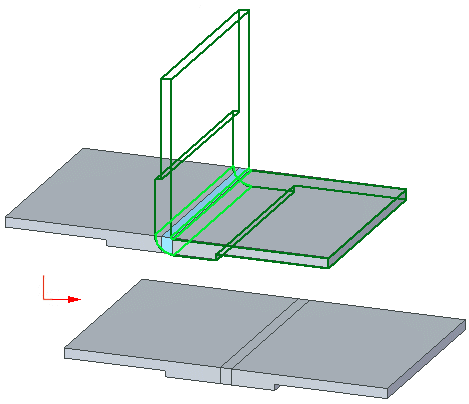

You can also use the Unbend command to straighten the bend as you would with a regular sheet metal part.

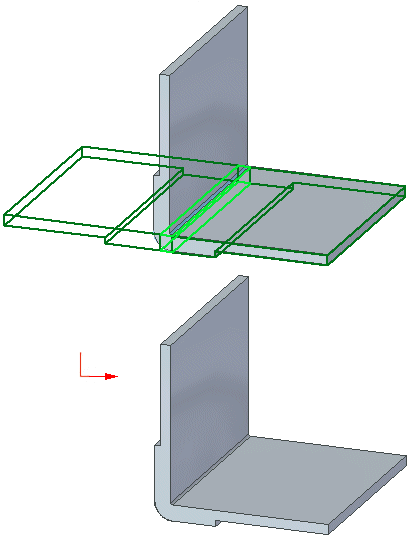

Likewise, you can use the Rebend command to reapply the bend to the model.
