Cut command
Cut command
Creates a cut through a defined portion of a part.

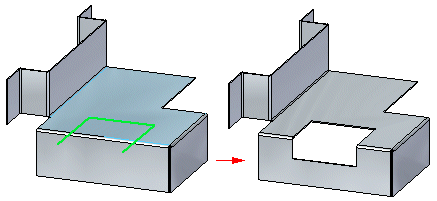

You can create a sheet metal cutout with an open profile

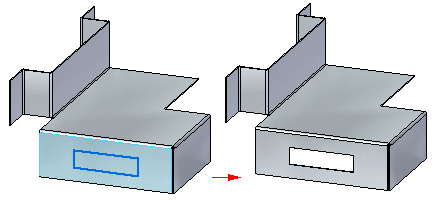

or a closed profile.
Face Normal cut types include:
This option creates a cutout that compensates for the material thickness of the part.

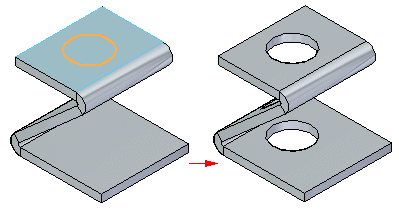

The Thickness cut option is useful when creating parts in which a shaft must pass through aligned circular cutouts.
This option creates a cutout based on the mid-plane of the part.
This option creates a cutout based on the nearest face of the part.

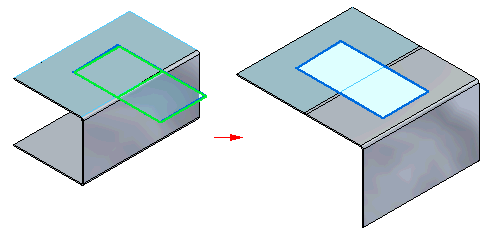

The Wrapped Cut option unfolds the bend to create a cut,
and then rebends when the cut is complete.
