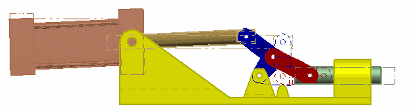

Now you can use the View Wizard command to create a single drawing view that shows the alternate positions of the same parts within an alternate position assembly. Previously, you had to create multiple drawing views and then overlay them to achieve this result.
A new page—Drawing View Creation Wizard (Alternate Position Assembly)—is displayed for you to choose the members to display. The purpose of this page is to specify one member to show in the primary position and to select other members to show in alternate positions.
On the Display tab (Drawing View Properties dialog box), you can use the new Alternate positions list, combined with the Parts list, to change the display properties of individual parts for each position of the members in the drawing view.
You can apply grayscale, model colors, or shading to the primary member in the drawing view using the Shading and Color tab (Drawing View Properties dialog box).
