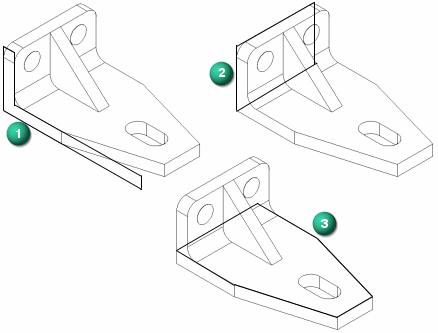

The first feature you create for a part or sheet metal model is called the base feature. Several commands are available for creating base features, but one thing they have in common is that they are sketch-based features. You should consider the following questions when starting a new model:

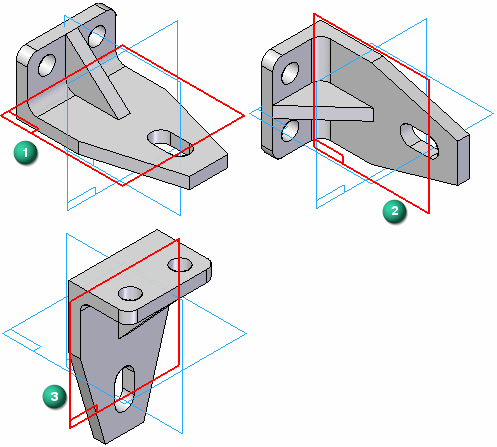

• What is the best sketch for the first feature on the part?



• Which reference plane should it be drawn on?



• Are there symmetric features on the part?

Use the following process to create a base feature for your part model.

1. Create a document using the iso part.par template.

   Tip:

   • If you want to model a machined, cast, molded, or plastic part, you should use a Part document (.par).

   • If you want to model a sheet metal part, you should use a Sheet Metal document (.psm) and the iso sheet metal.psm template.

2. Sketch the base feature.

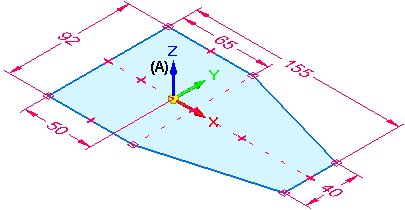

   You construct a sketch-based feature by drawing a closed sketch region (A) on a reference plane (B).



   1. Start a sketch by selecting a sketch plane and pressing F3 to lock it.

      Tip:

      The first sketch you draw must be a closed sketch region, and it is typically drawn on one of the three principal planes of the base coordinate system (A).



      To learn about sketching options, see Drawing sketches of parts.

   2. Use the commands in the Draw group to draw the base feature. For example:

      • Draw a rectangle using two points.

      • Draw a circle by center point.

3. Apply sketch element relationships.

   (Optional) If you drew a shape using disjoint elements such as lines, arcs, or curves, you can use the various relationship commands to apply additional geometric relationships to maintain proper alignment when edits are made. For example, you can:

   • Make elements parallel.

   • Make elements perpendicular.

   • Make elements tangent.

   • Make elements symmetric about an axis.

4. Add dimensions to the sketch.

   Use the Smart Dimension command to add dimensions to the sketch elements.

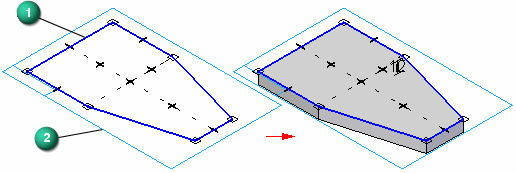

5. Extrude the sketch into a 3D shape.

   From the sketch, construct an extruded base feature using the Select tool.

6. Continue building the part.

   Do any of the following:

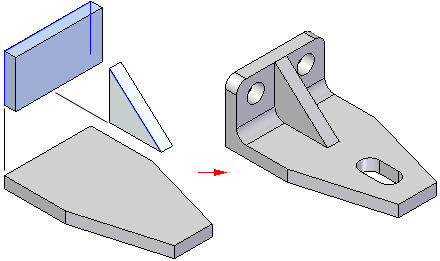

   • Sketch another feature on the base part, and then use the sketch to construct an extrusion or cutout using the Select tool.

     Tip:

     • You can press F3 to lock a sketch plane and then use the Sketch View command to change to a flat sketch plane, making it easier to draw new sketch elements on the part.

     • When you are finished sketching, you can press Ctrl+I to return to the default isometric view.

   • Create a hole.

   • Round the corners.

7. Finish the part.

   1. Apply a material to the part.

   2. Save the document.

8. (Optional) You can continue with any of these workflows:

   • Modify a synchronous model.

   • Produce a detailed model drawing.

   • Create a basic sheet metal part

   • Create a basic assembly.
