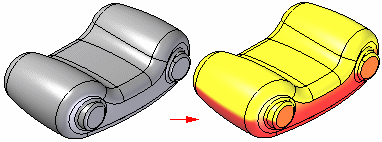

Displays colors on the model based on the surface angles with respect to a draft plane you define. This allows you to visualize whether a part can be removed from a mold or die. To display draft face analysis colors, you must also shade the active window using the Shaded or Shaded With Visible Edges commands.
You can use the Draft Face Analysis Settings command to specify the draft plane, draft angle, and assign the colors you want to use.

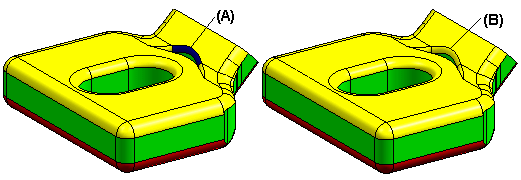

The results of a draft face analysis depends on the current view quality. You might find that the draft face analysis result changes if you modify the view quality. For example, if you increase the view quality using the Sharpen command from 2 to 4, the results for the face shown in the illustration are changed from a crossover face (A) to a positive face (B).
