These enhancements were made in the Assembly environment in Solid Edge ST5. The changes apply to all assembly models.

• Assembly relationship enhancements

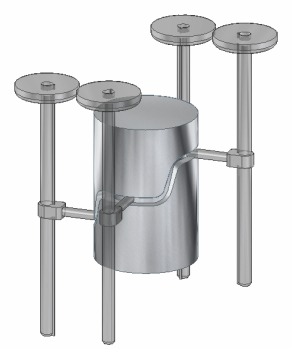

• Barrel cam assembly relationship

• Large assembly modes

• Terrain modeling using Virtual Components

• Mirror assembly enhancements

• Replace part enhancements

• Nailboards (Draft-Wire Harness)

• Insert an assembly copy

• Geometry Inspector enhanced

• Standard Parts enhanced

• More display configuration control for assembly drawing views

• Piping and frame enhancements
