Flange command
Flange command
Constructs a flange by extruding material that represents the face of the flange.

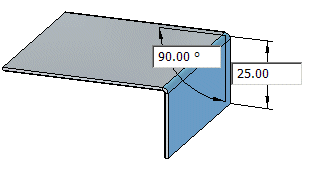

In the synchronous environment, you can construct a flange by selecting a linear thickness edge to display the flange start handle,
clicking the flange start handle,
specifying a flange distance,
and clicking to place the flange.

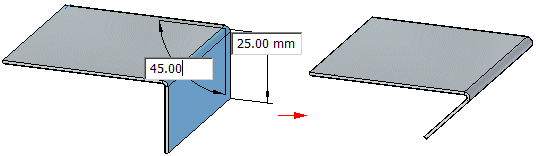

When you click, a 90° flange is drawn automatically. However, when specifying the distance for the flange, you can also specify an angle.
Note:
Use the Tab button to switch between the distance and angular value controls.

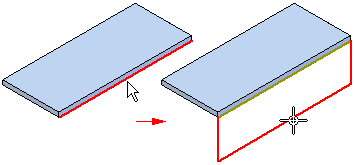

In the ordered environment, you construct a flange by selecting a linear thickness edge, and then reposition the cursor to define the flange direction and length.
