Examining dimension changes during a synchronous edit

While in Solution Manager mode, you can examine the dimension values that are affected by the synchronous edit.

You can use view commands such as Fit, Rotate, and Zoom to better observe the faces and dimensions on the model which are changing.

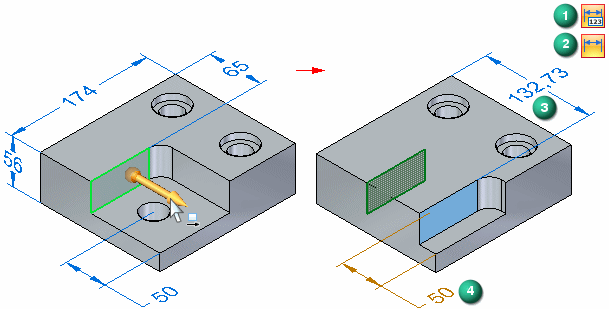

You can click the indicator symbols (1, 2) to display total count values for changed and detached dimensions in PromptBar. You can also pause the cursor over individual changed or detached dimensions to display their previous value in PromptBar.

Demonstration

A face is rotated and an edge of the face has a driven angular dimension. A model change indicator displays showing that a dimension is changing. A face is then rotated and as the face moves it consumes a face that has a dimensioned edge. A model change indicator appears showing that a dimension is detached.
