The Solid Edge Simulation application is available for all Solid Edge models. These enhancements were made in ST5.

• Thermal studies

• Coupled studies for thermal stress analysis

• Thermal loads

• Thermal plots

• Combined results for mixed mesh models

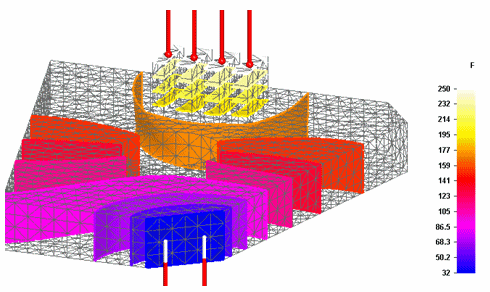

• Iso line and iso surface result plots

• Unite Bodies command enhancements

• Total or distributed load option now available

• Mesh size displayed in the user interface

• New option simplifies geometry during meshing

• Targeted results plot processing

• Curved beams now supported for structural frame models
